1N5399GP - GLASS PASSIVATED JUNCTION RECTIFIER

Datasheet Summary

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • High temperature metallurgically bonded construction.
  • Glass passivated cavity-free junction.
  • Capable of meeting environmental standards of MIL-S-19500.
  • 1.5 Ampere operation at TA=70°C with no thermal runaway.
  • Typical IR less than 0.1µA.
  • High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension P A T E N.

📥 Download Datasheet

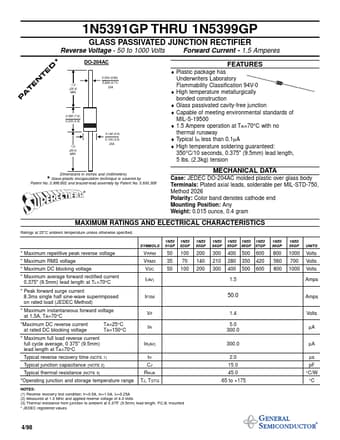

Datasheet preview – 1N5399GP

Datasheet Details

Part number 1N5399GP
Manufacturer General Semiconductor
File Size 64.18 KB
Description GLASS PASSIVATED JUNCTION RECTIFIER
Datasheet download datasheet 1N5399GP Datasheet
Additional preview pages of the 1N5399GP datasheet.

📁 Similar Datasheet

  • 1N5399GP - 1.5 Amp Glass Passivated Rectifier (Micro Commercial Components)
  • 1N5399GP - Glass Passivated Junction Plastic Rectifier (Vishay)
  • 1N5399GP - 1.5 Amp. Glass Passivated Junction Rectifier (FAGOR)
  • 1N5399G - GENERAL PURPOSE RECTIFIER (RFE)
  • 1N5399G - 1.5A GENERAL PURPOSE RECTIFIER (Frontier Electronics)
  • 1N5399G - GLASS PASSIVATED RECTIFIERS (HY)
  • 1N5399G - GLASS PASSIVATED RECTIFIER (MEI SEMI)
  • 1N5399G - General Purpose Rectifiers (Eris)
  • 1N5399G - Axial Leaded General Purpose Rectifiers (Formosa MS)
  • 1N5399G - GLASS PASSIVATED RECTIFIER (HITANO)
Other Datasheets by General Semiconductor
  • 1N5399 - GENERAL PURPOSE PLASTIC RECTIFIER
  • 1N5391 - GENERAL PURPOSE PLASTIC RECTIFIER
  • 1N5391GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N5392 - GENERAL PURPOSE PLASTIC RECTIFIER
  • 1N5392GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N5393 - GENERAL PURPOSE PLASTIC RECTIFIER
  • 1N5393GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N5394 - GENERAL PURPOSE PLASTIC RECTIFIER

Full PDF Text Transcription

Click to expand full text
1N5391GP THRU 1N5399GP GLASS PASSIVATED JUNCTION RECTIFIER Reverse Voltage - 50 to 1000 Volts * D DO-204AC 0.034 (0.86) 1.0 (25.4) MIN. 0.028 (0.71) DIA. Forward Current - 1.5 Amperes FEATURES ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ High temperature metallurgically bonded construction ♦ Glass passivated cavity-free junction ♦ Capable of meeting environmental standards of MIL-S-19500 ♦ 1.5 Ampere operation at TA=70°C with no thermal runaway ♦ Typical IR less than 0.1µA ♦ High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension P A T E N T E 0.300 (7.6) 0.230 (5.8) 0.140 (3.6) 0.104 (2.6) DIA. 1.0 (25.4) MIN.
