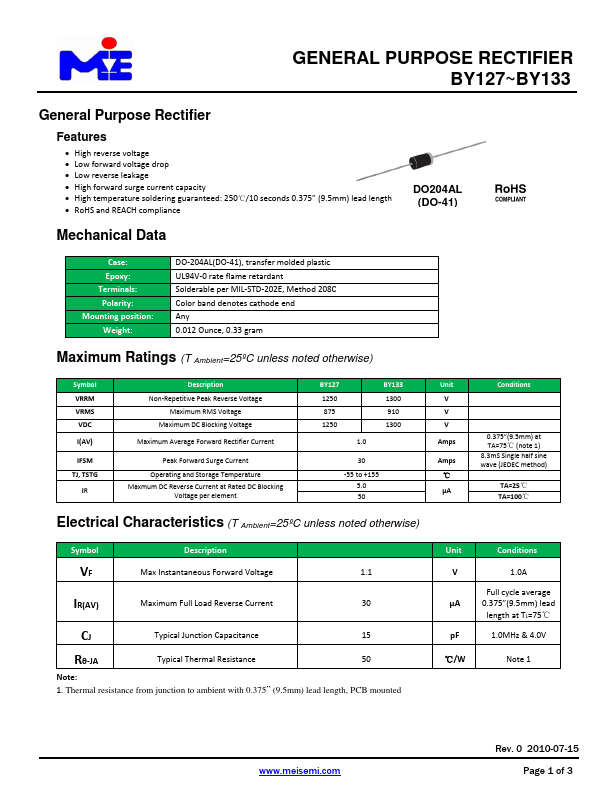

Description
Non-Repetitive Peak Reverse Voltage
Maximum RMS Voltage Maximum DC Blocking Voltage
Maximum Average Forward Rectifier Current
Peak Forward Surge Current Operating and Storage Temperature Maxmum DC Reverse Current at Rated DC Blocking
Voltage per element
BY127 1250 875 1250
BY133 1300 910 1300
1.0
30
-55 to +155 5.0 50
Unit V V V
Amps
Amps ℃ μA
Conditions
0.375”(9.5mm) at TA=75℃ (note 1) 8.3mS Single half sine wave (JEDEC method)
TA=25℃ TA=100℃

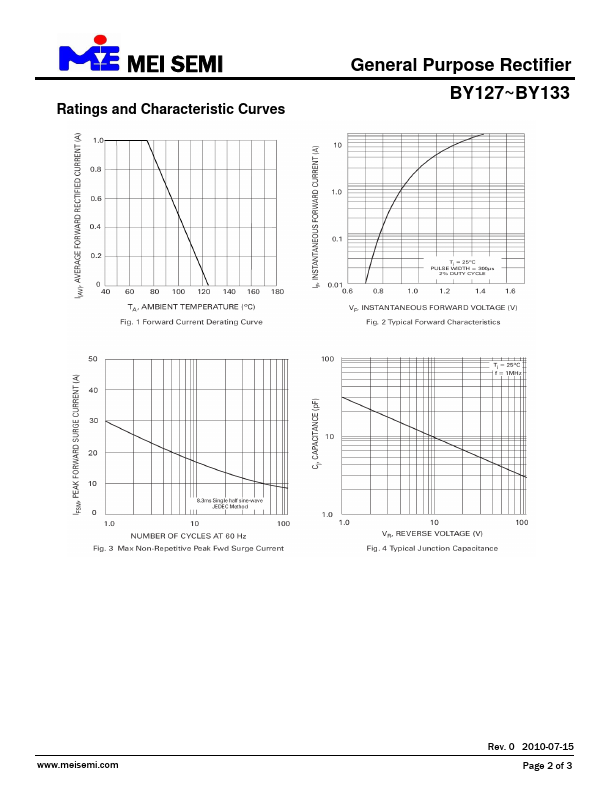

Electrical Characteristics (T Ambient=25ºC un
Features
- High reverse voltage.
- Low forward voltage drop.
- Low reverse leakage.
- High forward surge current capacity.
- High temperature soldering guaranteed: 250℃/10 seconds 0.375” (9.5mm) lead length.
- RoHS and REACH compliance

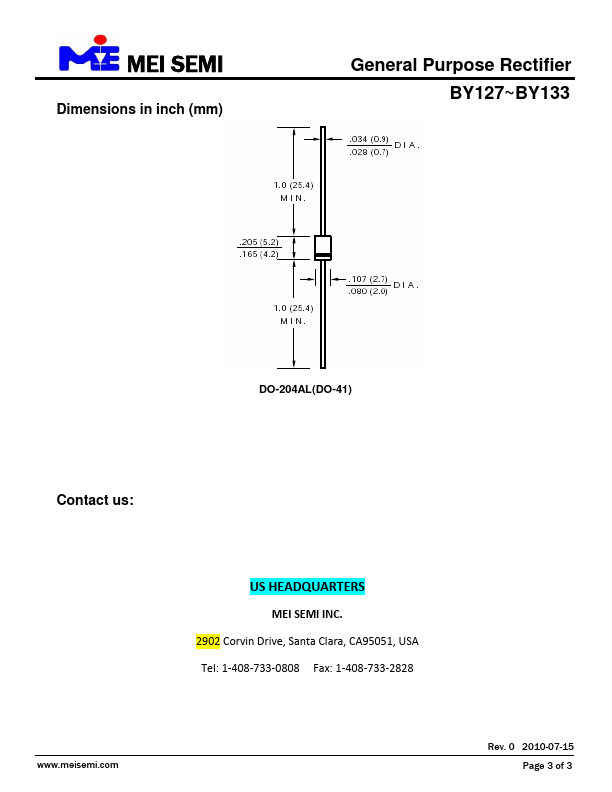

DO204AL (DO-41)
Mechanical Data
Case: Epoxy: Terminals: Polarity: Mounting position: Weight:
DO-204AL(DO-41), transfer molded plastic UL94V-0 rate flame retardant Solderable per MIL-STD-202E, Method 208C Color band denotes cathode end Any 0.012 Ounce.
