IAM-E45

The IAM-E45 is USB Series Mini-B Connectors designed by MITSUMI.

Product Overview

MITSUMI

Part number	IAM-E45
Manufacturer	MITSUMI
File Size	179.05 KB
Description	USB Series Mini-B Connectors
Datasheet	IAM-E45_MITSUMI.pdf

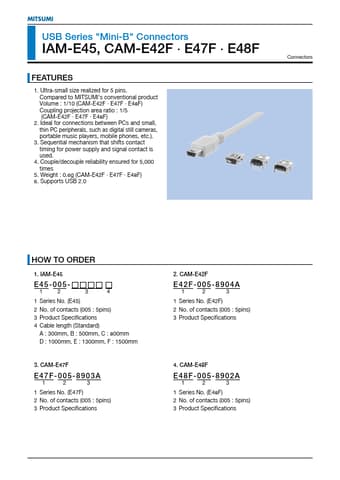

Additional preview pages of the IAM-E45 datasheet.

1. Ultra-small size realized for 5 pins. Compared to MITSUMl's conventional product Volume : 1/10 (CAM-E42F.
E47F.
E48F) Coupling projection area ratio : 1/5 (CAM-E42F.
E47F.
E48F) 2. Ideal for connections between PCs and small, thin PC peripherals, such as digital still cameras, portable music players, mobile phones, etc. ). 3. Sequential mechanism that shifts contact timing for power supply and signal contact is used. 4. Couple/decouple reliability ensured for 5,000 times 5.
