SCM3402ASI - Half-Duplex RS485/RS422 Transceiver

Product Overview

MORNSUN

Datasheet Details

Part number	SCM3402ASI
Manufacturer	MORNSUN
File Size	1.69 MB
Description	Half-Duplex RS485/RS422 Transceiver
Datasheet	SCM3402ASI Datasheet

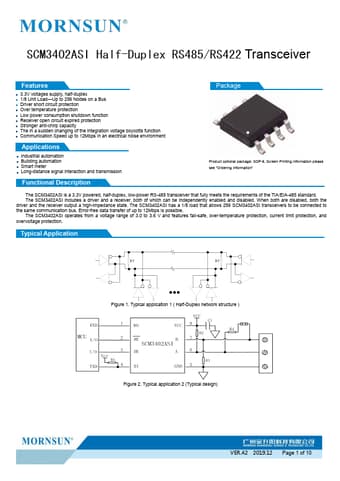

Additional preview pages of the SCM3402ASI datasheet.

Product details

Description

Package Product optional package: SOP-8, Screen Printing information please see "Ordering Information" The SCM3402ASI is a 3.3V powered, half-duplex, low-power RS-485 transceiver that fully meets the requirements of the TIA/EIA-485 standard.The SCM3402ASI includes a driver and a receiver, both of which can be independently enabled and disabled.When both are disabled, both the driver and the receiver output a high-impedance state.The SCM3402ASI has a 1/8 load that allows 256 SCM3402ASI trans

Features

3.3V voltages supply, half-duplex.
1/8 Unit Load.
Up to 256 Nodes on a Bus.
Driver short circuit protection.
Over temperature protection.
Low power consumption shutdown function.
Receiver open circuit expired protection.
Stronger anti-chirp capacity.
The in a sudden changing of the integration voltage boycotts function.
Communication Speed up to 12Mbps in an electrical noise environment.
