SCM3406A

Half-duplex Transceiver

SCM3406A Features

* 3.0-5.5V single supply operation

* Baud Rate Up to 10 Mbps

* 1/8 Unit Load

* Up to 256 Nodes on a Bus

* Bus-Pin ESD Protection Up to 15 kV

* Driver short circuit protection Package Applications

* Industrial Automation

* Building Automation

* Smart Electricit

SCM3406A General Description

SCM3406A is a half-duplex enhanced transceiver designed for RS

*485 data bus networks. Powered by 3VDC-5.5VDC supply, the SCM3406A is fully compliant with TIA/EIA-485A standard and is suitable for data transmission of up to 10 Mbps. Receivers have an exceptionally high input impedance, which .

SCM3406A Datasheet (3.68 MB)

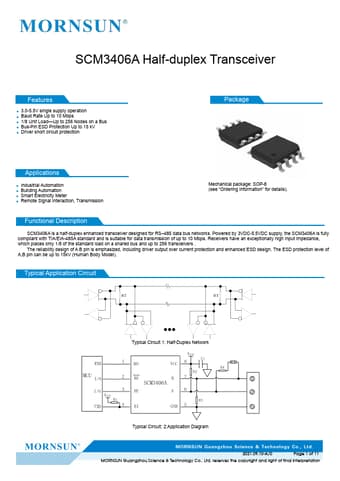

Preview of SCM3406A PDF

Datasheet Details

Part number:

SCM3406A

Manufacturer:

MORNSUN

File Size:

3.68 MB

Description:

Half-duplex transceiver.
