SCM3000C - 3-phase Brushless Motor Driver ICs

Product Overview

Sanken

Datasheet Details

Part number	SCM3000C
Manufacturer	Sanken
File Size	0.98 MB
Description	3-phase Brushless Motor Driver ICs
Datasheet	SCM3000C Datasheet

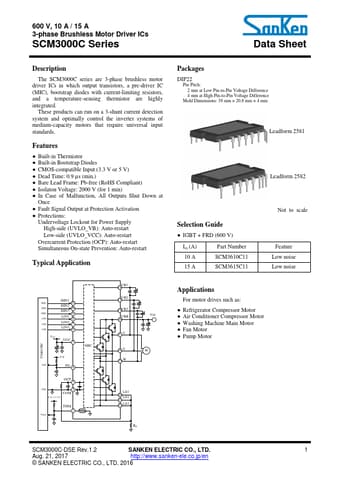

Additional preview pages of the SCM3000C datasheet.

Product details

Description

The SCM3000C series are 3-phase brushless motor driver ICs in which output transistors, a pre-driver IC (MIC), bootstrap diodes with current-limiting resistors, and a temperature-sensing thermistor are highly integrated.

Features

Built-in Thermistor.
Built-in Bootstrap Diodes.
CMOS-compatible Input (3.3 V or 5 V).
Dead Time: 0.9 µs (min. ).
Bare Lead Frame: Pb-free (RoHS Compliant).
Isolaton Voltage: 2000 V (for 1 min).
In Case of Malfunction, All Outputs Shut Down at Once.
Fault Signal Output at Protection Activation.
Protections: Undervoltage Lockout for Power Supply High-side (UVLO_VB): Auto-restart Low-side (UVLO_VCC): Auto-restart Overcurrent Protection (OCP): Auto-restar.
