SCM3610C11

3-phase Brushless Motor Driver ICs

SCM3610C11 Features

* Built-in Thermistor

* Built-in Bootstrap Diodes

* CMOS-compatible Input (3.3 V or 5 V)

* Dead Time: 0.9 µs (min.)

* Bare Lead Frame: Pb-free (RoHS Compliant)

* Isolaton Voltage: 2000 V (for 1 min)

* In Case of Malfunction, All Outputs Shut Down at Once

* Fault Signa

SCM3610C11 General Description

The SCM3000C series are 3-phase brushless motor driver ICs in which output transistors, a pre-driver IC (MIC), bootstrap diodes with current-limiting resistors, and a temperature-sensing thermistor are highly integrated. These products can run on a 3-shunt current detection system and optimally cont.

SCM3610C11 Datasheet (0.98 MB)

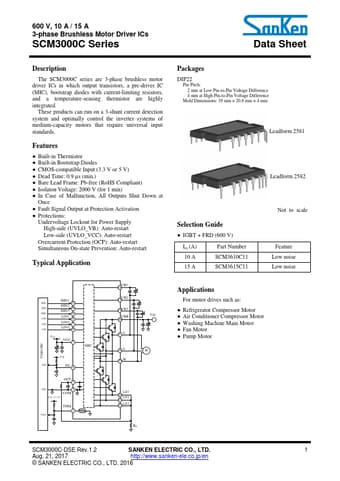

Preview of SCM3610C11 PDF

Datasheet Details

Part number:

SCM3610C11

Manufacturer:

Sanken ↗

File Size:

0.98 MB

Description:

3-phase brushless motor driver ics.
