TD501DCANHE

Industrial Bus

TD501DCANHE Features

* Two-terminal isolation(2.5kVDC)

* High baud rate of up to 1 Mbps

* Operating ambient temperature range: -40℃ to +85℃

* The bus supports maximum 110 nodes

* ESD: Contact ±8kV/Air±15kV

* Surge protection: ±4kV RoHS EN62368-1 The TD301DCANHEH/ TD501DCANHE series’ main functio

TD501DCANHE Datasheet (1.01 MB)

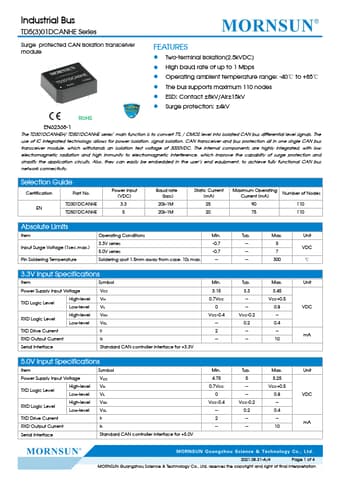

Preview of TD501DCANHE PDF

Datasheet Details

Part number:

TD501DCANHE

Manufacturer:

MORNSUN

File Size:

1.01 MB

Description:

Industrial bus.
