TD502DCAN - Industrial Bus

TD502DCAN Description

Industrial Bus TDx02DCAN Series Duplex universal CAN isolation transceiver module .

TD502DCAN Features

* Integrated high efficiency isolated DC/DC converter
* Two-port isolation (2.5kVDC)
* High baud rate up to 1Mbps
* Operating ambient temperature range: -40℃ to +105℃
* Complies with ISO 11898 standard
* An unpowered node does not disturb the bus lines
* The bus supports

📥 Download Datasheet

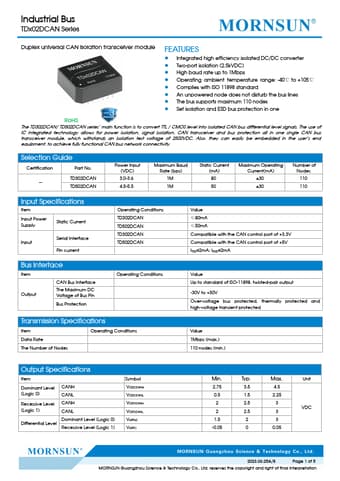

Preview of TD502DCAN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD502DCAN
Manufacturer
MORNSUN
File Size
1.32 MB
Datasheet
TD502DCAN-MORNSUN.pdf
Description
Industrial Bus
