TD501MCANFD

Single high-speed CANFD isolated transceiver

TD501MCANFD Features

* Two-port isolation test voltage(2.5kVDC)

* High baud rate of up to 5 Mbps

* Operating ambient temperature range: -40℃ to +105℃

* Complies with ISO 11898-5 physical layer standard

* Bus timeout protection

* Applicable to 24V or 12V systems

* Compact size, standard DIP8 p

TD501MCANFD Datasheet (699.57 KB)

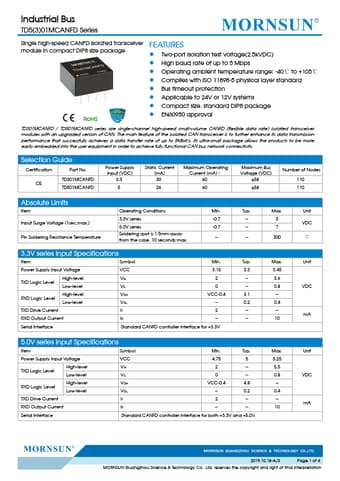

Preview of TD501MCANFD PDF

Datasheet Details

Part number:

TD501MCANFD

Manufacturer:

MORNSUN

File Size:

699.57 KB

Description:

Single high-speed canfd isolated transceiver.
