TD501MCAN

Single high-speed CAN isolated transceiver

TD501MCAN Features

* Two-port isolation test voltage(2.5kVDC)

* High baud rate of up to 1 Mbps

* Operating ambient temperature range: -40℃ to +105℃

* Complies with ISO 11898-2 standard

* Bus timeout protection

* The bus supports maximum 110 nodes

* Compact size, standard DIP8 package EN623

TD501MCAN Datasheet (1.25 MB)

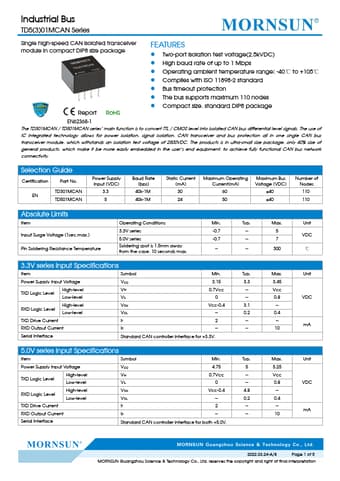

Preview of TD501MCAN PDF

Datasheet Details

Part number:

TD501MCAN

Manufacturer:

MORNSUN

File Size:

1.25 MB

Description:

Single high-speed can isolated transceiver.
