MT4410, MT4410-MOS - N-Channel Power MOSFET

MT4410 Description

MOS-TECH Semiconductor Co.,LTD MT4410 N-Channel PowerTrench® MOSFET 30V, 18A, 4.5mΩ .
This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional sw.

MT4410 Features

* rDS(on) = 4.5mΩ, VGS = 10V, ID = 18A
* rDS(on) = 6.5mΩ, VGS = 4.5V, ID = 17A
* High performance trench technology for extremely low rDS(on)
* Low gate charge

MT4410 Applications

* DC/DC converters
* RoHS Compliant Branding Dash 1 2 3 4 SO-8 5 54 63 72 81 MOSFET Maximum Ratings TA = 25°C unless otherwise noted Symbol VDSS VGS ID Parameter Drain to Source Voltage Gate to Source Voltage Drain Current Continuous (TA = 25oC, VGS = 10V, RθJA = 50oC/W) Conti

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MT4410, MT4410-MOS. Please refer to the document for exact specifications by model.

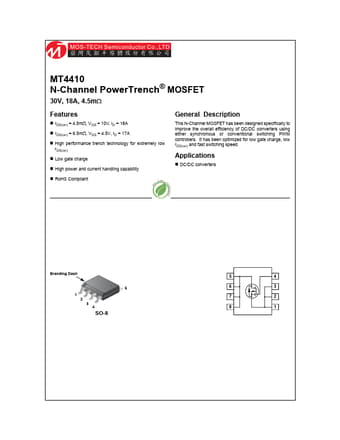

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT4410, MT4410-MOS
Manufacturer
MOS-TECH
File Size
425.80 KB
Datasheet
MT4410-MOS-TECH.pdf
Description
N-Channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: MT4410, MT4410-MOS.
Please refer to the document for exact specifications by model.
