MS6715

1 Stereo Input / 1 Stereo Output Audio Processor

MS6715 Features

* Operation range : 2.7V~6.5V

* 2 independent speaker controls for balance

* Tone controls (treble and bass)

* Loudness and independent mute function

* Volume control in 1.25 dB/step

* I2C interface

* Components less and good PSRR

* Housed in S

MS6715 General Description

The MS6715 is a 1 stereo inputs/2-channel outputs digital control audio processor for the low voltage operation. Volume, tone (bass and treble), and balance (left/right) processor are incorporated into a single chip. The MS6715 also has the loudness function. These functions can be built a Hi-Fi aud.

MS6715 Datasheet (1.45 MB)

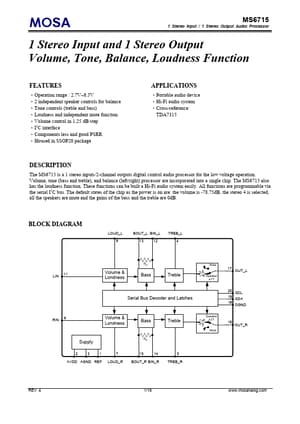

Preview of MS6715 PDF

Datasheet Details

Part number:

MS6715

Manufacturer:

MOSA ELECTRONICS

File Size:

1.45 MB

Description:

1 stereo input / 1 stereo output audio processor.
