MS6895

Fully Differential Input Excellent PSRR

MS6895 Features

* PSRR at 217Hz, 80dB at 5V

* Operation range: 2.5V~5.5V

* Shutdown Current 0.1uA at 5V

* Output power, THD+N=1% RL=8Ω, 1.1W at 5V, 0.4W at 3.3V, 200mW at 2.5V

* Unity-gain stable

* Space-saving SOP8, enhance thermal pad APPLICATIONS

* Portable elect

MS6895 General Description

The MS6895 is a fully differential power amplifier that can drive 1.1W of continuous average power into a mono 8Ω bridged-tied load (BTL). Operation with 2.5V supply, it can drive 200mw into a mono 8Ω. The BTL configuration eliminates the need for external coupling capacitors on the output in most a.

MS6895 Datasheet (346.97 KB)

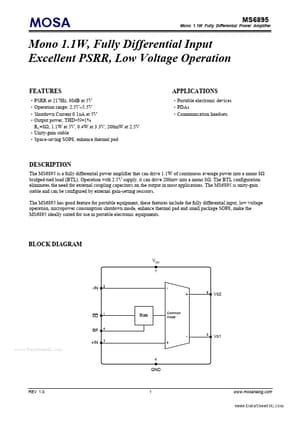

Preview of MS6895 PDF

Datasheet Details

Part number:

MS6895

Manufacturer:

MOSA ELECTRONICS

File Size:

346.97 KB

Description:

Fully differential input excellent psrr.
