SYS8512FKX-12

512K x 8 SRAM MODULE

SYS8512FKX-12 Features

* Access Times of 70/85/100/120 ns. Low seated height 32 Pin 0.6" Dual-In-Line package with JEDEC compatible pinout. 5 Volt Supply ± 10%. Low Power Dissipation: Average (min cycle) 605mW (maximum). Standby (CMOS) 44mW (maximum). Completely Static Opera

SYS8512FKX-12 General Description

The SYS8512FKX is plastic 4M Static RAM Module housed in a standard 32 pin Dual-In-Line package organised as 512K x 8. The module utilises fast SRAMs housed in TSOP packages, and uses double sided surface mount techniques, buried decoder and dual board construction to achieve a very high density mod.

SYS8512FKX-12 Datasheet (94.63 KB)

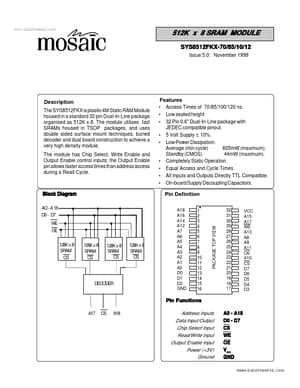

Preview of SYS8512FKX-12 PDF

Datasheet Details

Part number:

SYS8512FKX-12

Manufacturer:

MOSAIC

File Size:

94.63 KB

Description:

512k x 8 sram module.
