SYS02V12AMC

Single Line TVS Diode

SYS02V12AMC Features

* Applications

* Transient protection for single line IEC 61000-4-2 (ESD) ±30kV (Air) ±30kV (Contact) IEC 61000-4-5 (Surge) 42A (8/20μs)

* For 12V and below operating voltage

* Protects one data, control or power line

* Capacitance: 400pF (Typical)

* Low leakage current: 0.01μA @

SYS02V12AMC General Description

SYS02V12AMC is a single line Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for cell phones, notebook computers, PDA's. The SYS02V12AMC is designed to protect sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD).

SYS02V12AMC Datasheet (582.94 KB)

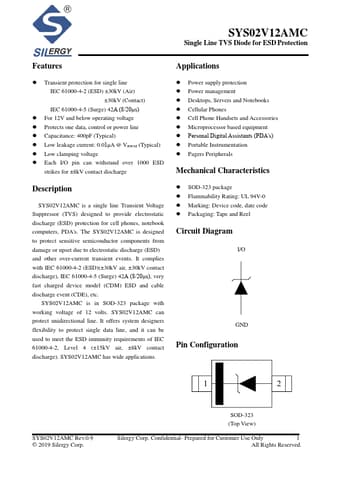

Preview of SYS02V12AMC PDF

Datasheet Details

Part number:

SYS02V12AMC

Manufacturer:

Silergy

File Size:

582.94 KB

Description:

Single line tvs diode.
