M5E Datasheet, Encoder, MOSDESIGN

M5E Features

  • Encoder ‧ Same Rosc matched to the DECODER M5D/F ‧ 312 =531, 441 codes, “0”, “X”, “1” Tri-states ‧ 4 cycles transmission each time ‧ Direct data transmit type:(Elimination TE and diodes) ─M5E-

PDF File Details

Part number:

M5E

Manufacturer:

MOSDESIGN

File Size:

242.29kb

Download:

📄 Datasheet

Description:

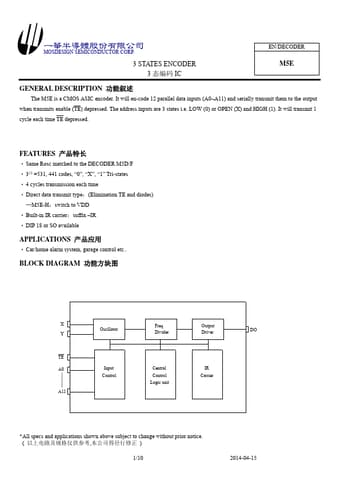

3-states encoder. The M5E is a CMOS ASIC encoder. It will en-code 12 parallel data inputs (A0~A11) and serially transmit them to the output when trans

Datasheet Preview: M5E 📥 Download PDF (242.29kb)
Page 2 of M5E Page 3 of M5E

M5E Application

  • Applications ‧ Car/home alarm system, garage control etc.. BLOCK DIAGRAM X Oscillator Y Freq Divider Output Driver TE A0 Input Central IR
