M5E56SP

PLL

Mitsubishi

M5E56SP Features

* Variations in the supply voltage have little effect on the oscillation frequency

* 200Hz/V typ (fo = 30kHz)

* The total harmonic distortion of demodulated output is low 0.35%

* Both square and triangular wave forms can be obtained as oscillator output

* Both l

M5E56SP General Description

The M51361 P/M5E565P is semiconductor integrated circuit consisting of a phase locked loop (PLL) IC which includes a phase comparator, a voltage controlled oscillator and a DC amplifier. The center frequency is determined by the oscillation frequency of the voltage controlled oscillator; the oscilla.

M5E56SP Datasheet (315.12 KB)

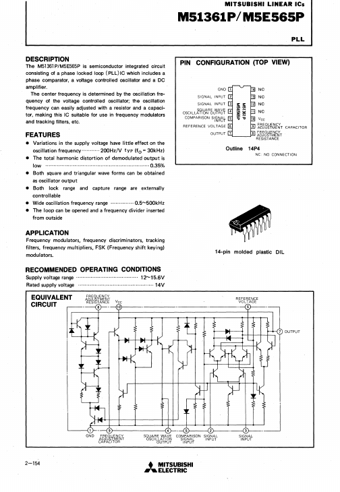

M5E56SP Datasheet Preview — Preview of M5E56SP PDF

Datasheet Details

Part number:

M5E56SP

Manufacturer:

Mitsubishi

File Size:

315.12 KB

Description:

Pll.
