M5E555A

SINGLE TIMER

M5E555A Features

* Timing from microseconds through minutes

* Operates in both astable and monostable modes

* Adjustable duty cycle

* High current output can source or sink 200mA

* Maximum frequency is 100kHz

* Reset voltage is about 1.4V for TTL level

* Built

M5E555A General Description

The M51848/M5E555A monolithic timing circuits are highly stable controllers capable of producing accurate time delays, or oscillation. Additional terminals are provided for triggering or resetting. In the time delay mode, the time is precisely controlled by one external resistor and capacitor. For a.

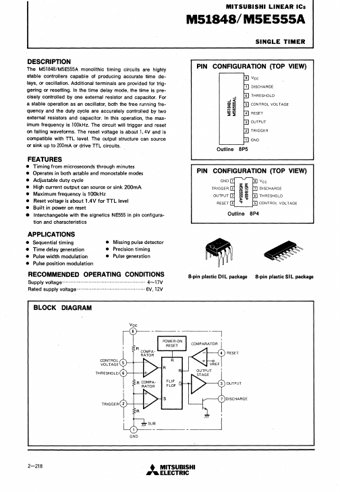

M5E555A Datasheet (257.71 KB)

Preview of M5E555A PDF

Datasheet Details

Part number:

M5E555A

Manufacturer:

Mitsubishi

File Size:

257.71 KB

Description:

Single timer.
