M5E556AP

DUAL TIMER

Mitsubishi

M5E556AP Features

* Timing from microseconds through minutes

* Operates in both astable and monostable modes

* Adjustable duty cycle

* High current output can source or sink 100mA

* Maximum frequency is 100kHz (guar

M5E556AP General Description

The M51847P I M5E556AP monolithic timing circuits are highly stable controllers capable of producing accurate time delays, or oscillation. Additional terminals are provided for triggering or resetting if desired. In the time delay mode, the time is pre~ise'iy Controlled by one external resistor and .

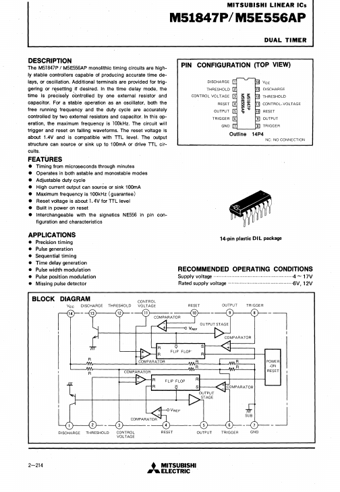

M5E556AP Datasheet (250.31 KB)

M5E556AP Datasheet Preview — Preview of M5E556AP PDF

Datasheet Details

Part number:

M5E556AP

Manufacturer:

Mitsubishi

File Size:

250.31 KB

Description:

Dual timer.
