FL42ST34-0954DA Datasheet - MOTION CONTROL PRODUCTS

FL42ST34-0954DA Hybrid Stepping Motor

3.6 Size 42mm Hybrid Stepping Motor General Specification for High Torque Hybrid Stepping Motor Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Shaft Radial Play Shaft Axial Play Max. radial force Max. axial force Rotation Specifications 3.6 5% (full step, no load) 10% 20% 80OCMax.(rated current,2 phase on) -20OC~+50OC 100M Min. ,500VDC 500VAC for one minute 0.02Max. (450 g-load) 0.08Max.

FL42ST34-0954DA-MOTIONCONTROLPRODUCTS.pdf

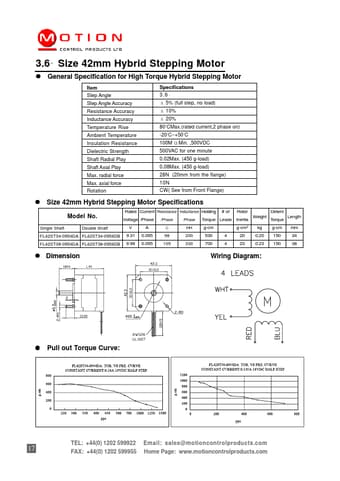

Preview of FL42ST34-0954DA PDF

Datasheet Details

Part number:

FL42ST34-0954DA

Manufacturer:

MOTION CONTROL PRODUCTS

File Size:

61.91 KB

Description:

Hybrid stepping motor.
