FL42ST38-0954DB Datasheet - MOTION CONTROL PRODUCTS

FL42ST38-0954DB Hybrid Stepping Motor

3.6 Size 42mm Hybrid Stepping Motor General Specification for High Torque Hybrid Stepping Motor Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Shaft Radial Play Shaft Axial Play Max. radial force Max. axial force Rotation Specifications 3.6 5% (full step, no load) 10% 20% 80OCMax.(rated current,2 phase on) -20OC~+50OC 100M Min. ,500VDC 500VAC for one minute 0.02Max. (450 g-load) 0.08Max.

FL42ST38-0954DB Datasheet (61.91 KB)

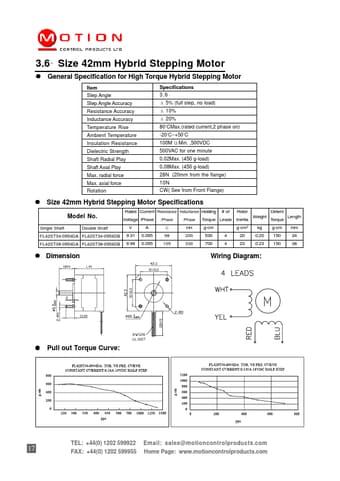

Preview of FL42ST38-0954DB PDF

Datasheet Details

Part number:

FL42ST38-0954DB

Manufacturer:

MOTION CONTROL PRODUCTS

File Size:

61.91 KB

Description:

Hybrid stepping motor.
