FL57ST41-1106A Datasheet - MOTION CONTROL PRODUCTS

FL57ST41-1106A Hybrid Stepping Motor

1.8 Size 57mm Hybrid Stepping Motor General Specification for Hybrid Stepping Motor Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Shaft Radial Play Shaft Axial Play Max. radial force Max. axial force Rotation Specifications 1.8 5% (full step, no load) 10% 20% 80OC Max.(rated current,2 phase on) -20OC~+50OC 100M Min. ,500VDC 500VAC for one minute 0.02Max. (450 g-load) 0.08Max. (450 g-loa.

FL57ST41-1106A Datasheet (394.18 KB)

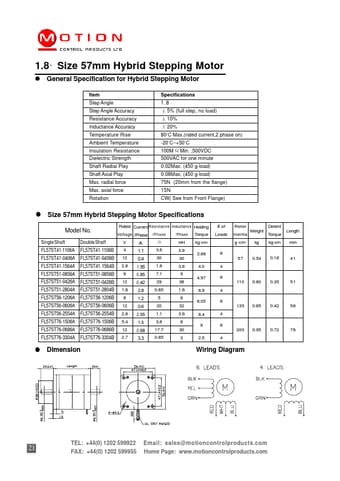

Preview of FL57ST41-1106A PDF
FL57ST41-1106A Datasheet Preview Page 2

Datasheet Details

Part number:

FL57ST41-1106A

Manufacturer:

MOTION CONTROL PRODUCTS

File Size:

394.18 KB

Description:

Hybrid stepping motor.
