FL5160, FL5150 Datasheet - Fairchild Semiconductor

FL5160 IGBT and MOSFET AC Phase Cut Dimmer Controller

The FL5150 and FL5160 are controllers for varying the pulse width for AC loads. The FL5150 is for 50 Hz and the FL5160 is for 60 Hz applications. The FL5150/60 is powered from the AC line and generates a programmable gate drive for controlling the pulse width for external IGBT or MOSFET transistors..

FL5160 Features

* Selectable Earth Ground or Line-Hot Zero Cross Detection: Complies with UL1472 2015 2nd Edition for Addition of Ground Leakage Current for Flicker Reduction (North America)

* User Programmable Leading or Trailing Edge Dimming Control

* Dynamic Over-Current and Temperature Protection

FL5150-FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: FL5160, FL5150. Please refer to the document for exact specifications by model.

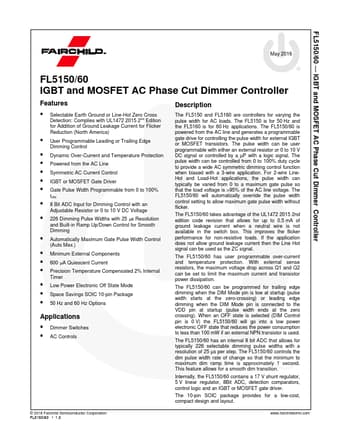

FL5160 Datasheet Preview Page 2 FL5160 Datasheet Preview Page 3

Datasheet Details

Part number:

FL5160, FL5150

Manufacturer:

Fairchild Semiconductor

File Size:

913.28 KB

Description:

Igbt and mosfet ac phase cut dimmer controller.

Note:

This datasheet PDF includes multiple part numbers: FL5160, FL5150.
Please refer to the document for exact specifications by model.
