FL86STH195-8504A, FL86STH65-5904A Datasheet - MOTION CONTROL PRODUCTS

FL86STH195-8504A High Torque Hybrid Stepping Motor

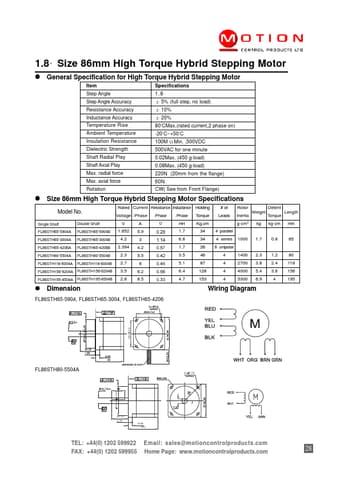

1.8 Size 86mm High Torque Hybrid Stepping Motor General Specification for High Torque Hybrid Stepping Motor Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Specifications 1.8 5% (full step, no load) 10% 20% 80OCMax.(rated current,2 phase on) Ambient Temperature Insulation Resistance -20OC~+50 CO 100M Min. ,500VDC Dielectric Strength Shaft Radial Play 500VAC for one minute 0.02Max. (450 g-load) Shaft Axial Play Max. radial force 0.08Max. (450 .

FL86STH65-5904A-MOTIONCONTROLPRODUCTS.pdf

This datasheet PDF includes multiple part numbers: FL86STH195-8504A, FL86STH65-5904A. Please refer to the document for exact specifications by model.
FL86STH195-8504A Datasheet Preview Page 2 FL86STH195-8504A Datasheet Preview Page 3

Datasheet Details

Part number:

FL86STH195-8504A, FL86STH65-5904A

Manufacturer:

MOTION CONTROL PRODUCTS

File Size:

191.82 KB

Description:

High torque hybrid stepping motor.

Note:

This datasheet PDF includes multiple part numbers: FL86STH195-8504A, FL86STH65-5904A.
Please refer to the document for exact specifications by model.
