MP2361DQ, MP2361 Datasheet - MPS

MP2361DQ, MP2361, 1.4MHz Step-Down Converter

The Future of Analog IC Technology .
The MP2361 is a monolithic step-down switch mode converter with a built-in internal power MOSFET.

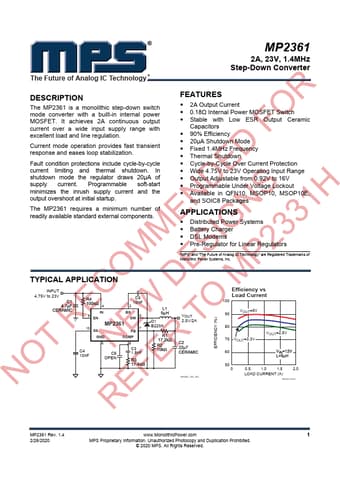

datasheet Preview Page 1 from Datasheet4u.com

MP2361-MPS.pdf

MP2361DQ Datasheet Preview — This datasheet PDF includes multiple part numbers: MP2361DQ, MP2361. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP2361DQ, MP2361

Manufacturer:

MPS

File Size:

484.41 KB

Description:

1.4MHz Step-Down Converter

Note:

This datasheet PDF includes multiple part numbers: MP2361DQ, MP2361.
Please refer to the document for exact specifications by model.

Features

* 2A Output Current
* 0.18Ω Internal Power MOSFET Switch
* Stable with Low ESR Output Ceramic Capacitors
* 90% Efficiency
* 20μA Shutdown Mode
* Fixed 1.4MHz Frequency
* Thermal Shutdown
* Cycle-by-Cycle Over Current Protection
* Wide 4.75V to 23V Operating Input

Applications

* Distributed Power Systems
* Battery Charger
* DSL Modems
* Pre-Regulator for Linear Regulators “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. VOUT 2.5V/2A MP2361_TAC_S01 EFFICIENCY (%) Efficiency vs Load Current 100 90
