MP2364DF, MP2364 - 1.4MHz Step-Down Converter

MPS

📥 Download Datasheet

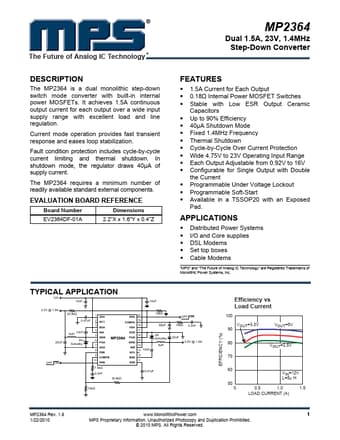

MP2364DF Datasheet Preview — This datasheet PDF includes multiple part numbers: MP2364DF, MP2364. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP2364DF, MP2364
Manufacturer	MPS
File Size	278.90 KB
Description	1.4MHz Step-Down Converter
Datasheet	MP2364-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP2364DF, MP2364. Please refer to the document for exact specifications by model.

MP2364DF Product details

Description

The MP2364 is a dual monolithic step-down switch mode converter with built-in internal power MOSFETs.

Features

1.5A Current for Each Output.
0.18Ω Internal Power MOSFET Switches.
Stable with Low ESR Output Ceramic Capacitors.
Up to 90% Efficiency.
40µA Shutdown Mode.
Fixed 1.4MHz Frequency.
Thermal Shutdown.
Cycle-by-Cycle Over Current Protection.
Wide 4.75V to 23V Operating Input Range.
Each Output Adjustable from 0.92V to 16V.
Configurable for Single Output with Double the Current.
Programmable.
