1A Linear Charger

MP2702 Features

* including input and battery over-voltage protection (OVP), a charge safety timer, and battery temperature protection compliant with the JEITA standard.

* The MP2702 provides a dedicated EN pin to enable or disable charging. Once charging is disabled, the quiescent

MP2702 General Description

The MP2702 is a linear charger for 1-cell to 2cell Li-ion, Li-polymer, and LiFePO4, and 2-cell to 6-cell NiMH batteries. The device can sustain a voltage up to 26V. The MP2702 measures the battery voltage (VBATT) and automatically charges the battery in four phases: trickle charge, pre-charge, const.

MP2702 Datasheet (823.93 KB)

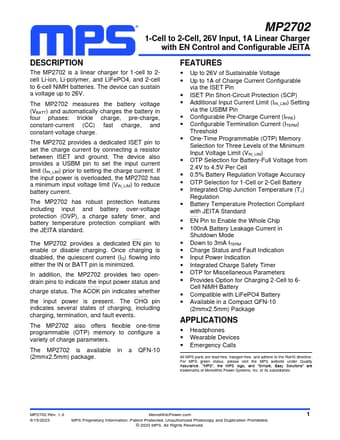

MP2702 Datasheet Preview — Preview of MP2702 PDF

Datasheet Details

Part number:

MP2702

Manufacturer:

MPS

File Size:

823.93 KB

Description:

1a linear charger.
