MP3422GG Datasheet, Converter, MPS

MP3422GG Features

  • Converter
  • Up to 98% Efficiency
  • 1.9V to 5.5V Input Range
  • 2.5V to 5.5V Output Range
  • Internal Synchronous Rectifier
  • 600kHz Fixed Switching Frequency

PDF File Details

Part number:

MP3422GG

Manufacturer:

MPS

File Size:

448.44kb

Download:

📄 Datasheet

Description:

Synchronous step-up converter. The MP3422 is a high-efficiency, synchronous, current  –mode, step-up converter with output disconnect. The MP3422 star

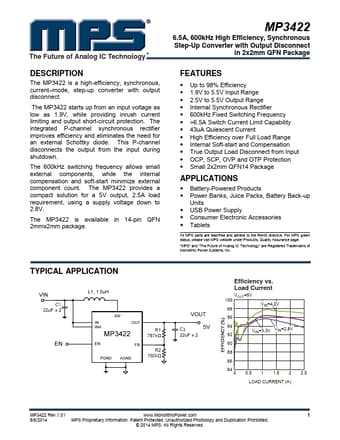

Datasheet Preview: MP3422GG 📥 Download PDF (448.44kb)
Page 2 of MP3422GG Page 3 of MP3422GG

MP3422GG Application

  • Applications
  • Battery-Powered Products
  • Power Banks, Juice Packs, Battery Back-up Units
  • USB Power Supply
  • Consu
