MP3424 Synchronous Step-Up Converter

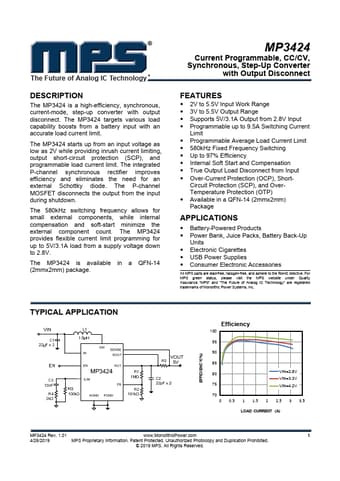

📥 Download Datasheet Datasheet Preview Page 1

Description

The Future of Analog IC Technology .
The MP3424 is a high-efficiency, synchronous, current-mode, step-up converter with output disconnect.

📥 Download Datasheet

Preview of MP3424 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MP3424
Manufacturer
MPS
File Size
1.40 MB
Datasheet
MP3424-MPS.pdf
Description
Synchronous Step-Up Converter

Features

* 2V to 5.5V Input Work Range
* 3V to 5.5V Output Range
* Supports 5V/3.1A Output from 2.8V Input
* Programmable up to 9.5A Switching Current Limit
* Programmable Average Load Current Limit
* 580kHz Fixed Frequency Switching
* Up to 97% Efficiency
* Internal Soft Star

Applications

* Battery-Powered Products
* Power Bank, Juice Packs, Battery Back-Up Units
* Electronic Cigarettes
* USB Power Supplies
* Consumer Electronic Accessories All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS websi
