MP3401A

P-Channel MOSFET

MP3401A Features

* -30V/-3A, RDS(ON)=46mΩ (typ.) @ VGS=-10V RDS(ON)=55mΩ (typ.) @ VGS=-4.5V RDS(ON)=79mΩ (typ.) @ V =-2.5V GS

* Super High Dense Cell Design

* Reliable and Rugged

* Enhance ESD Cell Protection

* Lead Free and Green Devices Available (RoHS Compliant)

MP3401A General Description

Top View D GS SOT-23 Applications

* Power Management in LCD TV, Monitor, Note- book Computer, Portable Equipment and Battery Powered Systems Ordering and Marking Information P-Channel MOSFET MP3401 MP3401A : Assembly Material Handling Code Temperature Range Package Code A03X Package Co.

MP3401A Datasheet (334.65 KB)

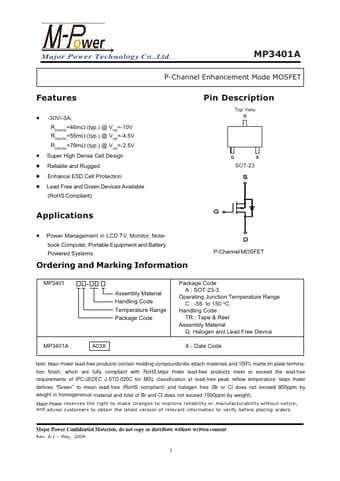

Preview of MP3401A PDF

Datasheet Details

Part number:

MP3401A

Manufacturer:

Major Power

File Size:

334.65 KB

Description:

P-channel mosfet.
