MP3414DJ, MP3414 - Step-up Converter

MP3414DJ Description

The Future of Analog IC Technology MP3414 1.8A,1MHz, Synchronous, Step-up Converter with Output Disconnect .
The MP3414 is a high-efficiency, synchronous, current. mode, step-up converter with output disconnect.

MP3414DJ Features

* an integrated power MOSFET that supports up to a 4V output and a typical 1.8A peak switching current. The MP3414 is available in a small 8-pin TSOT23 package. FEATURES
* Up to 96% Efficiency
* 0.8V Low Voltage Start-Up
* 0.6V-to-4V Input Range
* 1.8V-to-4V Output Range
* Interna

MP3414DJ Applications

* Battery-Powered Products
* Personal Medical Devices
* Portable Media Players
* Wireless Peripherals
* Handheld Computers and Smartphones All MPS parts are lead-free, halogen free, and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Ass

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP3414DJ, MP3414. Please refer to the document for exact specifications by model.

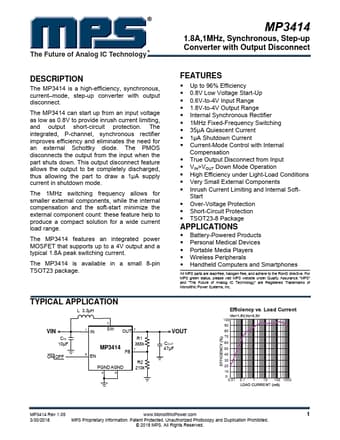

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP3414DJ, MP3414
Manufacturer
MPS
File Size
480.08 KB
Datasheet
MP3414-MPS.pdf
Description
Step-up Converter
Note
This datasheet PDF includes multiple part numbers: MP3414DJ, MP3414.
Please refer to the document for exact specifications by model.
