MP3414A

5.5V Synchronous Step-Up Converter

MP3414A Features

* produce a compact solution for a wide current load range. The MP3414A features an integrated power MOSFET that supports an output of up to 5.5V and a peak switching current above 3A. The MP3414A is available in a small 8-pin TSOT23 package. FEATURES

* Supports 5V/1A Output at 2.8V Input

* 1

MP3414A General Description

The MP3414A is a high-efficiency, synchronous current mode, step-up converter with output disconnect. The MP3414A can start up from an input voltage as low as 1.8V while providing inrush current limiting and output short-circuit protection (SCP). The integrated P-channel synchronous rectifier improv.

MP3414A Datasheet (876.45 KB)

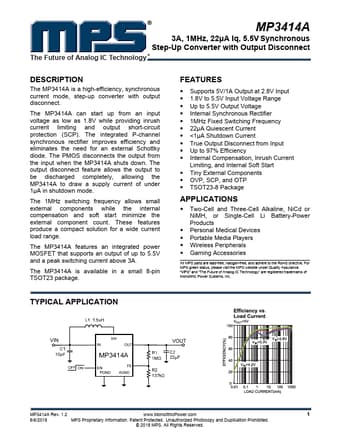

Preview of MP3414A PDF

Datasheet Details

Part number:

MP3414A

Manufacturer:

MPS

File Size:

876.45 KB

Description:

5.5v synchronous step-up converter.
