MP3415 Datasheet - MPS

3.6A Step-Up Converter

MP3415 Features

* an integrated power MOSFET that supports an output up to 5.5V and a peak switching current above 3.6A. The MP3415 is available in a small QFN-12 (2mmx2mm) package. MP3415 3.6A, 1MHz, Synchronous, Step-Up Converter with Output Disconnect FEATURES

* 1.8V to 5.5V Input Voltage Range

* Output V

MP3415 General Description

The MP3415 is a high-efficiency, synchronous, current-mode, step-up converter with output disconnect. The MP3415 can start up with an input voltage as low as 1.8V while providing inrush current limiting and output short-circuit protection (SCP). The integrated, P-channel, synchronous rectifier impro.

MP3415 Datasheet (678.69 KB)

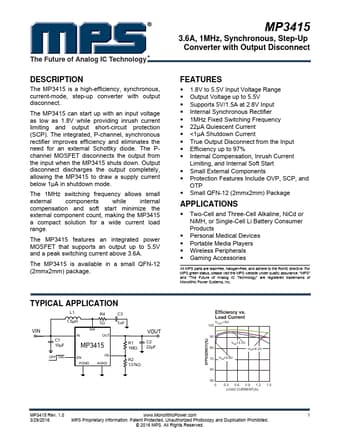

MP3415 Datasheet Preview — Preview of MP3415 PDF

Datasheet Details

Part number:

MP3415

Manufacturer:

MPS

File Size:

678.69 KB

Description:

3.6a step-up converter.
