MP3415GG, MP3415 - 3.6A Step-Up Converter

MP3415GG Description

The Future of Analog IC Technology .
The MP3415 is a high-efficiency, synchronous, current-mode, step-up converter with output disconnect.

MP3415GG Features

* an integrated power MOSFET that supports an output up to 5.5V and a peak switching current above 3.6A. The MP3415 is available in a small QFN-12 (2mmx2mm) package. MP3415 3.6A, 1MHz, Synchronous, Step-Up Converter with Output Disconnect FEATURES
* 1.8V to 5.5V Input Voltage Range
* Output V

MP3415GG Applications

* Two-Cell and Three-Cell Alkaline, NiCd or NiMH, or Single-Cell Li Battery Consumer Products
* Personal Medical Devices
* Portable Media Players
* Wireless Peripherals
* Gaming Accessories All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP3415GG, MP3415. Please refer to the document for exact specifications by model.

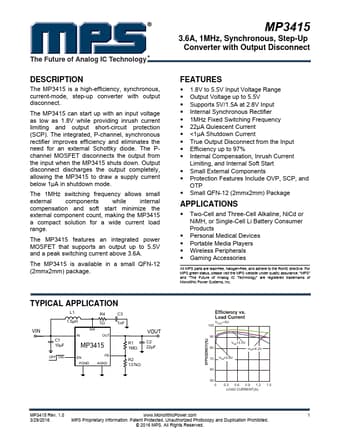

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP3415GG, MP3415
Manufacturer
MPS
File Size
678.69 KB
Datasheet
MP3415-MPS.pdf
Description
3.6A Step-Up Converter
Note
This datasheet PDF includes multiple part numbers: MP3415GG, MP3415.
Please refer to the document for exact specifications by model.
