MP5031 - USB PD Port Controller

Datasheet Summary

Description

The MP5031 is a USB power delivery (PD) controller that is compatible with USB Type-C 2.0 and USB PD 3.0 specifications.

The MP5031 is designed for downward-facing port (DFP) applications, such as USB PD charging ports.

Features

  • 4.6V to 5.5V VCC Supply Voltage Range.
  • 3.3V to 21V Bus Voltage (VBUS) Range.
  • Integrated Physical Layer for Biphase Mark Code (BMC).
  • Integrated Protocol Layer.
  • Integrated Policy Engine.
  • Supports One Type-C Downward-Facing Port (DFP) with USB PD 3.0 and a Programmable Power Supply (PPS).
  • Supports Dedicated Charging Port (DCP) Schemes for BC1.2, Apple Divider 3 Mode, and 1.2V/1.2V Mode.
  • Supports Quick Charge 3.0 (QC3.0) and Huawei Fast Charge Protocol (FCP).

📥 Download Datasheet

Datasheet preview – MP5031

Datasheet Details

Part number MP5031
Manufacturer MPS
File Size 2.27 MB
Description USB PD Port Controller
Datasheet download datasheet MP5031 Datasheet
Additional preview pages of the MP5031 datasheet.

📁 Similar Datasheet

  • MP503 - Air-Quality Gas Sensor (Winsen)
  • MP503 - PRESS-FIT MOTOLOLA DIODES (Shunye)
  • MP5005 - 50 Amp Single Phase Bridge Rectifier (Micro Commercial Components)
  • MP5005 - PRESS-FIT MOTOLOLA DIODES (Shunye)
  • MP5005W - Single Phase Bridge Rectifier (MCC)
  • MP5006 - 50 Amp Single Phase Bridge Rectifier (Micro Commercial Components)
  • MP5007 - 50 Amp Single Phase Bridge Rectifier (Micro Commercial Components)
  • MP5008 - 50 Amp Single Phase Bridge Rectifier (Micro Commercial Components)
  • MP5009 - 50 Amp Single Phase Bridge Rectifier (Micro Commercial Components)
  • MP500B - Low Cost Quartz Crystal (CTS)
Other Datasheets by MPS
  • MP5032 - QC 3.0 Controller
  • MP5032GJ - QC 3.0 Controller
  • MP5034 - USB Charging Port Controller
  • MP5034GJ - USB Charging Port Controller
  • MP5035 - Configurable Current Limit Switch
  • MP5035GJ - Configurable Current Limit Switch
  • MP5036 - Current Limit Switch
  • MP5036A - 0.4A to 5A Current Limit Switch

Full PDF Text Transcription

Click to expand full text

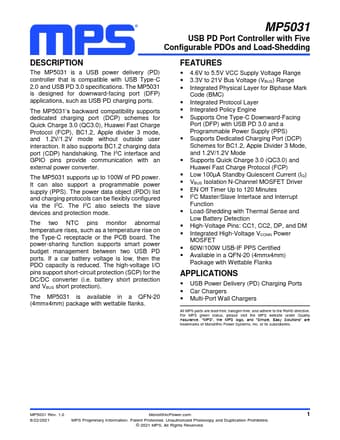

MP5031 USB PD Port Controller with Five Configurable PDOs and Load-Shedding DESCRIPTION The MP5031 is a USB power delivery (PD) controller that is compatible with USB Type-C 2.0 and USB PD 3.0 specifications. The MP5031 is designed for downward-facing port (DFP) applications, such as USB PD charging ports. The MP5031’s backward compatibility supports dedicated charging port (DCP) schemes for Quick Charge 3.0 (QC3.0), Huawei Fast Charge Protocol (FCP), BC1.2, Apple divider 3 mode, and 1.2V/1.2V mode without outside user interaction. It also supports BC1.2 charging data port (CDP) handshaking. The I2C interface and GPIO pins provide communication with an external power converter. The MP5031 supports up to 100W of PD power. It can also support a programmable power supply (PPS).
