MP5034GJ, MP5034 - USB Charging Port Controller

MP5034GJ Description

MP5034 USB Charging Port Controller Integrating QC 3.0 Protocol .
The MP5034 supports DCP schemes for battery charging specification (BC1.

MP5034GJ Features

* include input overvoltage protection (OVP) and thermal shutdown. The MP5034 requires a minimal number of readily available, standard, external components to complete the USB switch and charging mode auto-detection solution. The MP5034 is available in an 8-pin TSOT23 package. FEATURES
* Wide 3.6

MP5034GJ Applications

* USB Charger Controller
* AC/DC Wall Adapter with USB Ports
* Power Bank Controller All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP5034GJ, MP5034. Please refer to the document for exact specifications by model.

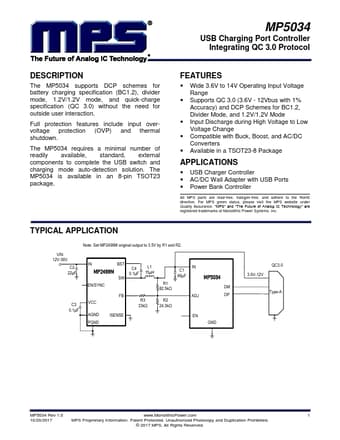

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP5034GJ, MP5034
Manufacturer
MPS
File Size
1.06 MB
Datasheet
MP5034-MPS.pdf
Description
USB Charging Port Controller
Note
This datasheet PDF includes multiple part numbers: MP5034GJ, MP5034.
Please refer to the document for exact specifications by model.
