MP503

Air-Quality Gas Sensor

MP503 Features

* High sensitivity to alcohol,smoke; quick response and resume; low power consumption,simple detection circuit,good stability and long life. Main Application It is used in occasions such as household and office for harmful gas detection,automatic exhaust device,air cleaner&etc. Technical Parameters S

MP503 General Description

of Sensor Characters Rs/Rs0 Smoke One breath Alcohol Methanal Concentration(ppm) Fig3.Typical Sensitivity Curve Rs means resistance in target gas with different concentration, R0means resistance ofsensor in clean air. All tests are finished under standardtestconditions. Output Voltage(V) Fig4.Ty.

MP503 Datasheet (427.18 KB)

Preview of MP503 PDF

Datasheet Details

Part number:

MP503

Manufacturer:

Winsen

File Size:

427.18 KB

Description:

Air-quality gas sensor.

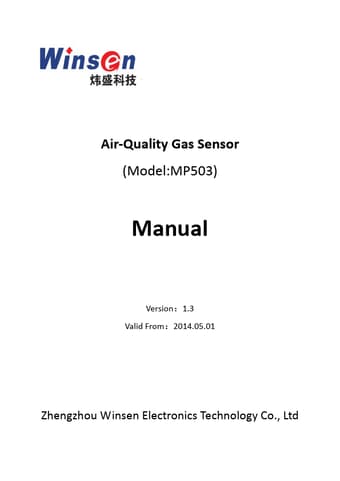

Air-Quality Gas Sensor (Model:MP503) Manual Version:1.3 Valid From:2014.05.01 Zhengzhou Winsen Electronics Technology Co., Ltd Statement This manual .
