MP5035 - Configurable Current Limit Switch

MP5035 Description

MP5035 2.9V to 22V, 50mA to 2A, Configurable Current Limit Switch in TSOT23-6 Package .
The MP5035 is a protection device designed to protect circuitry on the output from transients on the input.

MP5035 Features

* Wide 2.9V to 22V Operating Input Voltage (VIN) Range
* 26V Absolute Maximum Transient VIN
* Integrated 82mΩ Power MOSFET
* Adjustable Current Limit or Fixed Current Limit when Floating the ILIMIT Pin
* Soft-Start Time Configurable through the DV/DT Pin

MP5035 Applications

* Hot Swaps
* Power Meters
* IP Cameras
* USB Power Distribution
* USB Protection
* USB3.1 Power Delivery All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assu

📥 Download Datasheet

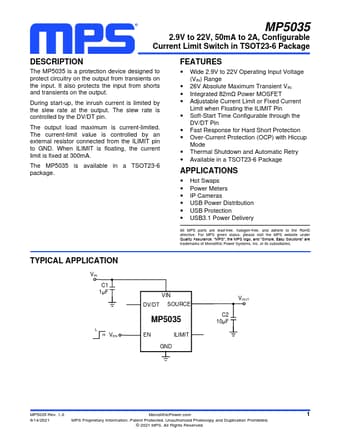

Preview of MP5035 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP5035
Manufacturer
MPS
File Size
910.30 KB
Datasheet
MP5035-MPS.pdf
Description
Configurable Current Limit Switch
