MP6002

Monolithic Flyback/Forward DC-DC Converter

MP6002 Features

* Integrated 0.45Ω 150V Power Switch

* Cycle-by-Cycle Current Limiting

* Programmable Switching Frequency

* Duty Cycle Limiting with Line Feed Forward

* Integrated 100V Startup Circuit

* Internal Slope Compensation

* Disable Function

* Built-in Soft-Start

* Line U

MP6002 General Description

The MP6002 is a monolithic Flyback/Forward DC-DC converter which includes a 150V power switch and is capable of delivering up to 30W output power. It can also be used for boost and SEPIC applications. The MP6002 uses the fixed-frequency peak current mode primary controller architecture. It has an in.

MP6002 Datasheet (496.38 KB)

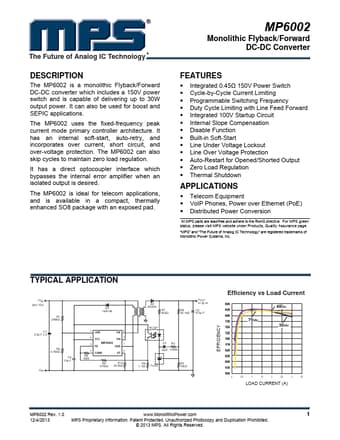

Preview of MP6002 PDF

Datasheet Details

Part number:

MP6002

Manufacturer:

MPS

File Size:

496.38 KB

Description:

Monolithic flyback/forward dc-dc converter.
