MP6004

Primary-Side Regulated Flyback/Buck 80V DCDC Converter

MPS

MP6004 Features

* include overload protection, over-voltage protection, opencircuit protection, and thermal shutdown. The MP6004 is available in a QFN-14 3mm x 3mm package. FEATURES

* Supports Primary-Side Regulated Flyback without Opto-Coupler Feedback

* Supports Buck from Up to 80 V Input

MP6004 General Description

The MP6004 is a monolithic flyback dc-dc converter with a 180 V power switch that targets isolated or non-isolated 13 W PoE applications. It supports both primary-side regulated flyback and high-voltage buck applications. MP6004 uses fixed peak current and variable frequency discontinuous conduction.

MP6004 Datasheet (1.18 MB)

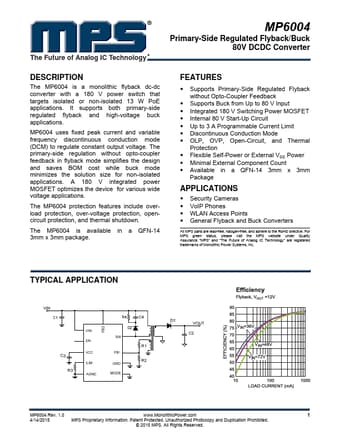

MP6004 Datasheet Preview — Preview of MP6004 PDF

Datasheet Details

Part number:

MP6004

Manufacturer:

MPS

File Size:

1.18 MB

Description:

Primary-side regulated flyback/buck 80v dcdc converter.
