MP6003DN, MP6003 Monolithic Flyback/SEPIC DC-DC Converter

MP6003DN Description

The Future of Analog IC Technology .
The MP6003 is a monolithic flyback DC-DC converter which includes a 150V power switch and is capable of delivering up to 15W output power.

MP6003DN Features

* Integrated 0.9Ω 150V Power Switch
* Cycle-by-Cycle Current Limiting
* Programmable Switching Frequency
* Duty Cycle Limiting with Line Feed Forward
* Integrated 100V Startup Circuit
* Internal Slope Compensation
* Disable Function
* B

MP6003DN Applications

* The MP6003 uses the fixed-frequency peak current mode primary controller architecture. It has an internal soft-start, auto-retry, and incorporates over current, short circuit, and over-voltage protection. The MP6003 can also skip cycles to maintain zero load regulation. It has a direct optocoupler

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP6003DN, MP6003. Please refer to the document for exact specifications by model.

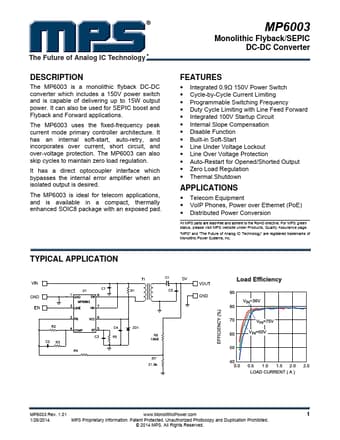

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP6003DN, MP6003
Manufacturer
MPS
File Size
805.99 KB
Datasheet
MP6003-MPS.pdf
Description
Monolithic Flyback/SEPIC DC-DC Converter
Note
This datasheet PDF includes multiple part numbers: MP6003DN, MP6003.
Please refer to the document for exact specifications by model.
