MP6501AGF, MP6501A, 2.5A Stepper Motor Driver

The Future of Analog IC Technology MP6501A 8V to 35V, 2.5A Stepper Motor Driver with Integrated MOSFETs .
The MP6501A is a stepper motor driver with a built-in micro stepping translator.

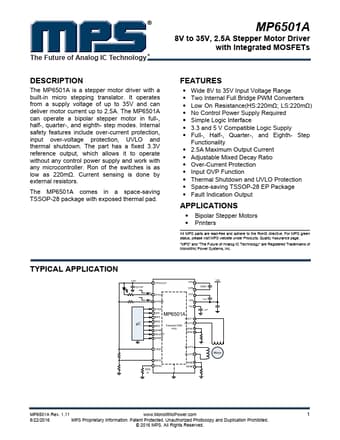

datasheet Preview Page 1 from Datasheet4u.com

MP6501A-MPS.pdf

MP6501AGF Datasheet Preview — This datasheet PDF includes multiple part numbers: MP6501AGF, MP6501A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP6501AGF, MP6501A

Manufacturer:

MPS

File Size:

788.91 KB

Description:

2.5A Stepper Motor Driver

Note:

This datasheet PDF includes multiple part numbers: MP6501AGF, MP6501A.
Please refer to the document for exact specifications by model.

Features

* include over-current protection, input over-voltage protection, UVLO and thermal shutdown. The part has a fixed 3.3V reference output, which allows it to operate without any control power supply and work with any microcontroller. Ron of the switches is as low as 220mΩ. Current sensing is done by ext

Applications

* Bipolar Stepper Motors
* Printers All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc.
