MP6504

Stepper Motor Driver

MP6504 Features

* include over-current protection (OCP), input over-voltage protection (OVP), under-voltage lockout (UVLO), and thermal shutdown. The MP6504 is available in a QFN-28 (4mmx5mm) package with an exposed thermal pad. FEATURES

* Wide 8V to 32V Input Voltage Range

* Two Internal Full-Bridge Drivers

MP6504 General Description

The MP6504 is a stepper motor driver with a built-in microstepping translator. The MP6504 operates from a supply voltage of up to 32V and can deliver a motor current of up to 2A. The MP6504 can operate a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes. The MP6504 has a fixed 3.

MP6504 Datasheet (828.06 KB)

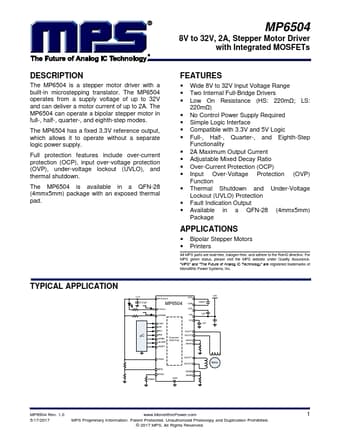

Preview of MP6504 PDF

Datasheet Details

Part number:

MP6504

Manufacturer:

MPS

File Size:

828.06 KB

Description:

Stepper motor driver.
