MP6504GV, MP6504 Datasheet - MPS

MP6504GV Stepper Motor Driver

The MP6504 is a stepper motor driver with a built-in microstepping translator. The MP6504 operates from a supply voltage of up to 32V and can deliver a motor current of up to 2A. The MP6504 can operate a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes. The MP6504 has a fixed 3.

MP6504GV Features

* include over-current protection (OCP), input over-voltage protection (OVP), under-voltage lockout (UVLO), and thermal shutdown. The MP6504 is available in a QFN-28 (4mmx5mm) package with an exposed thermal pad. FEATURES

* Wide 8V to 32V Input Voltage Range

* Two Internal Full-Bridge Drivers

MP6504-MPS.pdf

This datasheet PDF includes multiple part numbers: MP6504GV, MP6504. Please refer to the document for exact specifications by model.

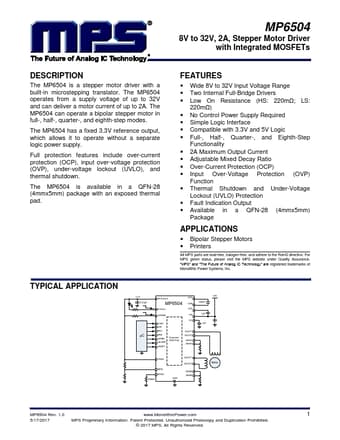

MP6504GV Datasheet Preview Page 2 MP6504GV Datasheet Preview Page 3

Datasheet Details

Part number:

MP6504GV, MP6504

Manufacturer:

MPS

File Size:

828.06 KB

Description:

Stepper motor driver.

Note:

This datasheet PDF includes multiple part numbers: MP6504GV, MP6504.
Please refer to the document for exact specifications by model.
