MP8130DJ Ultra Low Power High Voltage Op Amp

The MP8130 is a rail-to-rail output, high voltage operational amplifier in a TSOT-23 package. This amplifier provides 200KHz bandwidth while consuming an incredibly low 10µA of supply current. The MP8130 can operate over a single supply range of 2.7V to 36V. It is available in tiny TSOT23-5 packages.

MP8130DJ Features

* Single Supply Operation: 2.7V to 36V

* TSOT23-5 Package

* 200KHz

* 3dB Bandwidth

* 10µA Supply Current

* Rail-to-Rail Output

* Unity-Gain Stable

* Input Common Mode to Ground

* Drives Up to 1000pF of Capacitive Loads

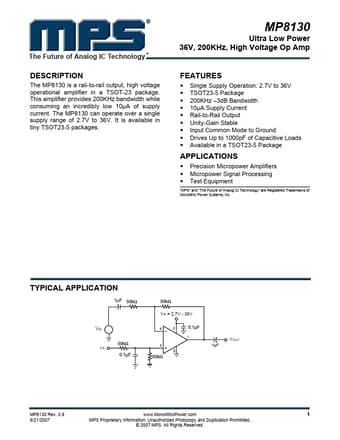

MP8130-MPS.pdf

MP8130DJ Datasheet Preview — This datasheet PDF includes multiple part numbers: MP8130DJ, MP8130. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP8130DJ, MP8130

Manufacturer:

MPS

File Size:

475.38 KB

Description:

Ultra low power high voltage op amp.

Note:

This datasheet PDF includes multiple part numbers: MP8130DJ, MP8130.
Please refer to the document for exact specifications by model.
