MP9486A Switching Current Limit Step-Down Converter

MP9486A Description

MP9486A 100V Input, 3.5A, Switching Current Limit Step-Down Converter .
The MP9486A is a high-voltage, step-down, switching regulator that delivers up to 1A of continuous current to the load.

MP9486A Features

* Wide 4.5V to 100V Input Range
* 3.5A Typical Peak Switching Current Limit
* Hysteretic Control: No Compensation
* Up to 1MHz Switching Frequency

MP9486A Applications

* making it ideal for automotive, industry, and lighting applications. Hysteretic voltage-mode control is employed for very fast response. MPS’s proprietary feedback control scheme minimizes the number of required external components. The switching frequency can be up to 1MHz, allowing for small comp

📥 Download Datasheet

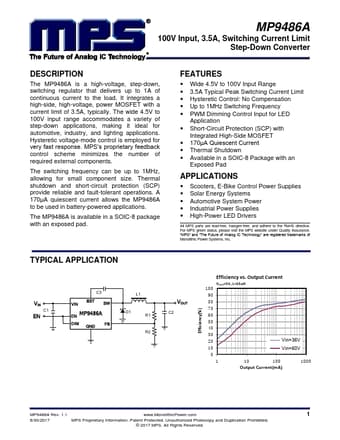

Preview of MP9486A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP9486A
Manufacturer
MPS
File Size
922.27 KB
Datasheet
MP9486A-MPS.pdf
Description
Switching Current Limit Step-Down Converter
