MP9486GN, MP9486 Step-Down Converter

MP9486GN Description

The Future of Analog IC Technology .
The MP9486 is a high-voltage, step-down, switching regulator that delivers up to 1A of continuous current to the load.

MP9486GN Features

* Wide 4.5V to 100V Input Range
* Hysteretic Control: No Compensation
* Up to 1MHz Switching Frequency

MP9486GN Applications

* making it ideal for automotive, industry, and lighting applications. Hysteretic voltage-mode control is employed for very fast response. MPS’s proprietary feedback control scheme minimizes the number of required external components. The switching frequency can be up to 1MHz, allowing for small comp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP9486GN, MP9486. Please refer to the document for exact specifications by model.

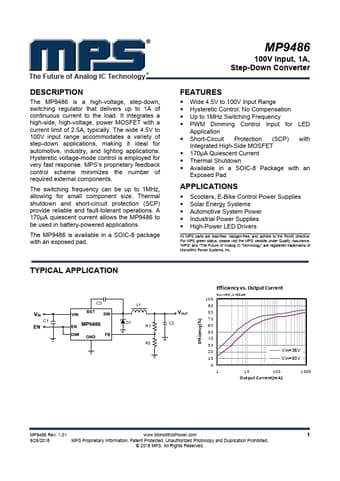

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP9486GN, MP9486
Manufacturer
MPS
File Size
660.26 KB
Datasheet
MP9486-MPS.pdf
Description
Step-Down Converter
Note
This datasheet PDF includes multiple part numbers: MP9486GN, MP9486.
Please refer to the document for exact specifications by model.
