MP9486AGN, MP9486A Switching Current Limit Step-Down Converter

MP9486AGN Description

MP9486A 100V Input, 3.5A, Switching Current Limit Step-Down Converter .
The MP9486A is a high-voltage, step-down, switching regulator that delivers up to 1A of continuous current to the load.

MP9486AGN Features

* Wide 4.5V to 100V Input Range
* 3.5A Typical Peak Switching Current Limit
* Hysteretic Control: No Compensation
* Up to 1MHz Switching Frequency

MP9486AGN Applications

* making it ideal for automotive, industry, and lighting applications. Hysteretic voltage-mode control is employed for very fast response. MPS’s proprietary feedback control scheme minimizes the number of required external components. The switching frequency can be up to 1MHz, allowing for small comp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP9486AGN, MP9486A. Please refer to the document for exact specifications by model.

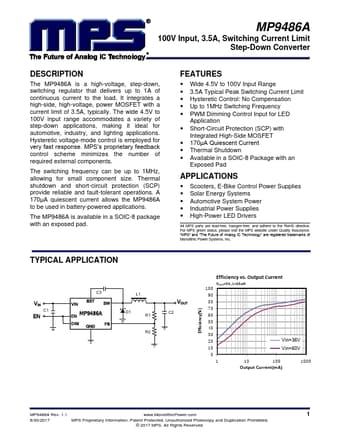

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP9486AGN, MP9486A
Manufacturer
MPS
File Size
922.27 KB
Datasheet
MP9486A-MPS.pdf
Description
Switching Current Limit Step-Down Converter
Note
This datasheet PDF includes multiple part numbers: MP9486AGN, MP9486A.
Please refer to the document for exact specifications by model.
