MPM3509

Step-Down Converter

MPS

MPM3509 Features

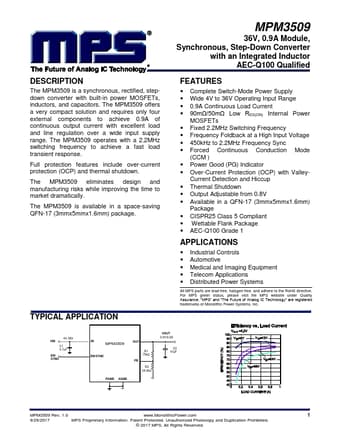

* include over-current protection (OCP) and thermal shutdown. The MPM3509 eliminates design and manufacturing risks while improving the time to market dramatically. The MPM3509 is available in a space-saving QFN-17 (3mmx5mmx1.6mm) package. TYPICAL APPLICATION MPM3509 36V, 0.9A Module, Synchronous, St

MPM3509 General Description

The MPM3509 is a synchronous, rectified, stepdown converter with built-in power MOSFETs, inductors, and capacitors. The MPM3509 offers a very compact solution and requires only four external components to achieve 0.9A of continuous output current with excellent load and line regulation over a wide i.

MPM3509 Datasheet (1.56 MB)

MPM3509 Datasheet Preview — Preview of MPM3509 PDF

Datasheet Details

Part number:

MPM3509

Manufacturer:

MPS

File Size:

1.56 MB

Description:

Step-down converter.
